Meta Spatial Anchors

Note

Meta spatial anchors are frequently used alongside Meta scene data, read the Meta Scene Manager tutorial for more info. Check out the Meta Scene Sample for a working demo of spatial anchors.

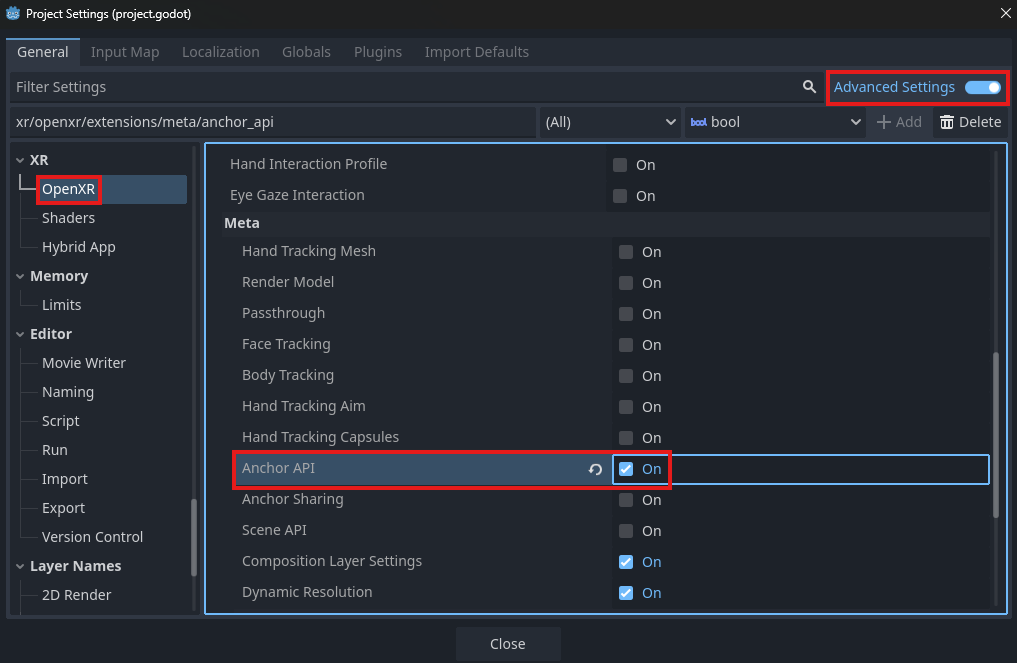

The OpenXRFbSpatialAnchorManager node provides an easy-to-use way to interact with Meta's Spatial Anchors. This tutorial walks through the basic features of the node such as placing/removing spatial anchors, and saving/loading them to/from a file. To begin, ensure the use_anchor_api property in Export Settings under Meta XR Features is enabled.

Then, add an OpenXRFbSpatialAnchorManager node as a child of XROrigin3D.

Creating Spatial Anchors

To place spatial anchors, the manager node's scene property should be set to the desired "spatial anchor scene" to be instantiated. Let's make a basic scene for our spatial anchors. Create a new scene that inherits from Node3D and name it SpatialAnchor. Give that node a child MeshInstance3D and assign the mesh property to be a CylinderMesh like below:

Assign spatial_annchor.tscn to your main scene's OpenXRFbSpatialAnchorManager. Let's spawn a spatial anchor at the position of one of our XRController3D nodes using its button_pressed signal. To spawn a spatial anchor, use the manager node's create_anchor method.

@onready var xr_controller_3d: XRController3D = $XROrigin3D/XRController3D
@onready var spatial_anchor_manager: OpenXRFbSpatialAnchorManager = $XROrigin3D/OpenXRFbSpatialAnchorManager

func _on_xr_controller_3d_button_pressed(name: String) -> void:
    if name == "ax_button":
                spatial_anchor_manager.create_anchor(xr_controller_3d.transform, {})

Scene Setup Method

The OpenXRFbSpatialAnchorManager scene_setup_method property is the name of the method that will be called on the spatial anchor scene immediately after instantiation. By default this is named setup_scene. This method should take an OpenXRFbSpatialEntity as an argument. Before creating that method, let's ammend our create_anchor method call with some custom data to modify the color of each cylinder we spawn. Store the hex codes of potential colors in an array constant in the script.

const COLORS = [
    "#FF0000", # Red
    "#00FF00", # Green
    "#0000FF", # Blue
]

func _on_xr_controller_3d_button_pressed(name: String) -> void:
    if name == "ax_button":
        var custom_data: Dictionary
        custom_data.color = COLORS[randi() % COLORS.size()]
        spatial_anchor_manager.create_anchor(xr_controller_3d.transform, custom_data)

Now we can apply that custom data in our spatial anchor scene's setup_scene method. Attach a script to the root node of spatial_anchor.tscn.

extends Node3D

@onready var mesh_instance_3d: MeshInstance3D = $MeshInstance3D

func setup_scene(spatial_entity: OpenXRFbSpatialEntity) -> void:
    var data := spatial_entity.custom_data
    var color := Color(data.get('color', '#FFFFFF'))

    var material := StandardMaterial3D.new()
    material.albedo_color = color
    mesh_instance_3d.set_surface_override_material(0, material)

Removing Spatial Anchors

To remove a spatial anchor scene, use the untrack_anchor method. This method accepts either an OpenXRFbSpatialEntity object or its uuid as an argument. To demonstrate, let's store the uuid values of the spatial anchors we create in an array. Connect the openxr_fb_spatial_anchor_tracked signal from OpenXRFbSpatialAnchorManager to an _on_anchor_tracked method:

var anchor_uuids: Array[StringName] = []

func _on_anchor_tracked(anchor_node: XRAnchor3D, spatial_entity: OpenXRFbSpatialEntity, is_new: bool) -> void:
    anchor_uuids.push_front(spatial_entity.uuid)

Then, in the function handling our XRController3D button_pressed signal, we can add the following code that will untrack and remove the most recently placed spatial anchor scene.

func _on_xr_controller_3d_button_pressed(name: String) -> void:

    ...

    elif name == "by_button":
        var uuid = anchor_uuids.pop_front()
        if spatial_anchor_manager.get_anchor_uuids().has(uuid):
            spatial_anchor_manager.untrack_anchor(uuid)

Saving Spatial Anchors

The headset can store the positions and UUIDs of the spatial anchors between sessions, but not any custom information about them for your game, such as the color in our tutorial project. Developers need to save that extra data somewhere, probably together with any other save data used by the project. In this tutorial, we will store the spatial anchor data in a JSON file. Create a save_spatial_anchors_to_file method to handle this, along with a SPATIAL_ANCHORS_FILE constant with the desired filepath.

const SPATIAL_ANCHORS_FILE = "user://openxr_fb_spatial_anchors.json"

func save_spatial_anchors_to_file() -> void:
    var file := FileAccess.open(SPATIAL_ANCHORS_FILE, FileAccess.WRITE)
    if not file:
        print("ERROR: Unable to open file for writing: ", SPATIAL_ANCHORS_FILE)
        return

    var anchor_data: Dictionary
    for uuid in spatial_anchor_manager.get_anchor_uuids():
        var entity: OpenXRFbSpatialEntity = spatial_anchor_manager.get_spatial_entity(uuid)
        anchor_data[uuid] = entity.custom_data

    file.store_string(JSON.stringify(anchor_data))
    file.close()

To keep this file up to date, this save method should be called whenever spatial anchors are created or removed. This is easily done using the openxr_fb_spatial_anchor_tracked and openxr_fb_spatial_anchor_untracked signals from OpenXRFbSpatialAnchorManager.

func _on_anchor_tracked(anchor_node: XRAnchor3D, spatial_entity: OpenXRFbSpatialEntity, is_new: bool) -> void:
    if is_new:
        save_spatial_anchors_to_file()


func _on_anchor_untracked(anchor_node: XRAnchor3D, spatial_entity: OpenXRFbSpatialEntity) -> void:
    save_spatial_anchors_to_file()

Loading Spatial Anchors

Now that there is spatial anchor data to be loaded, we can use the OpenXRFbSpatialAnchorManager load_anchors method. The JSON file containing the data will need to be parsed and then passed to load_anchors, so create a load_spatial_anchors_from_file method to handle this.

func load_spatial_anchors_from_file() -> void:
    var file := FileAccess.open(SPATIAL_ANCHORS_FILE, FileAccess.READ)
    if not file:
        return

    var json := JSON.new()
    if json.parse(file.get_as_text()) != OK:
        print("ERROR: Unable to parse ", SPATIAL_ANCHORS_FILE)
        return

    if not json.data is Dictionary:
        print("ERROR: ", SPATIAL_ANCHORS_FILE, " contains invalid data")
        return

    var anchor_data: Dictionary = json.data
    if anchor_data.size() > 0:
        spatial_anchor_manager.load_anchors(anchor_data.keys(), anchor_data, OpenXRFbSpatialEntity.STORAGE_LOCAL, true)

This method should be called after the OpenXR session has been initialized. OpenXRInterface has a session_begun signal that we can use for this like below:

func _ready():
    var xr_interface: OpenXRInterface = XRServer.find_interface("OpenXR")
    if xr_interface and xr_interface.is_initialized():
        xr_interface.session_begun.connect(_on_openxr_session_begun)

func _on_openxr_session_begun() -> void:
    load_spatial_anchors_from_file()
